Description

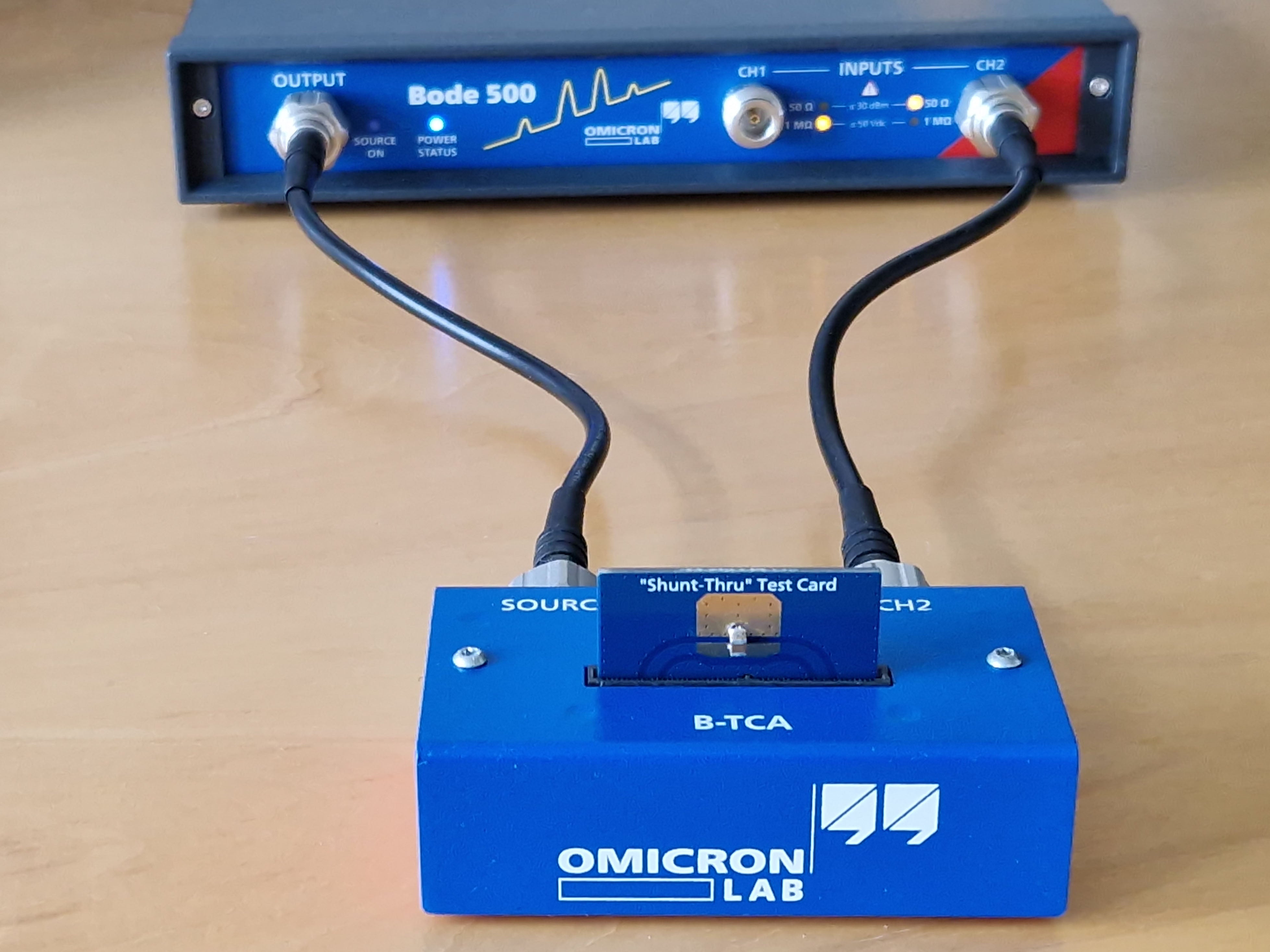

Test fixture for simple impedance and S-Parameter measurements of surface mount components over a wide frequency range up to 450 MHz.
Key features
- Optimized for impedance measurements of passive electronic SMD components
- Measurement of complex impedance at frequencies up to 450 MHz
- Enables One-Port, Shunt-Thru and Series-Thru measurements
- Simplifies S-parameter measurements on passive components
Connectors
- Source, CH2: N connector (female, shield connected to housing)
- Test card interface: PCIe edge-card connector
- DUT must be soldered to test cards
Scope of Delivery
- B-TCA test card adapter
- Printed User Manual
- 2x N-N cable 30 cm (m-m)
- 2x N-BNC cable 50 cm (m-m)
- Calibrator for each setup (Shunt-Thru, Series-Thru, One-Port and Shunt-Thru with Rs)
- 8x test card for each setup (Shunt-Thru, Series-Thru, One-Port and Shunt-Thru with Rs)
